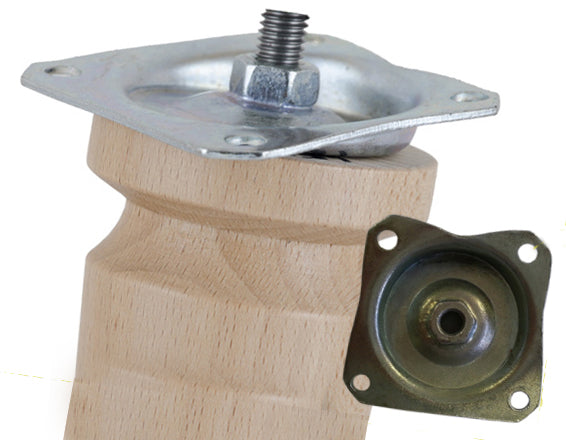

Angled Corner Plate Leg Fittings

Product Description

Turn a straight tapered leg into an angled accent leg.
If the legs have an M8 dowel central fitting then this special T nut will angle the legs giving a completely different look.
60 mm square.
M8 nut angle from plinth is 12.5 degrees. Hole diameter in from will vary depending on the length of dowel exposed through nut.
M8 Dowel Length / Hole diameter required
40 mm exposed length - hole diam 23 mm
35 mm exposed length - hole diam 20 mm
30 mm exposed length - hole diam 18 mm
4 screws required (not provided) for each nut to go through 5.5mm dia holes.
Code: ANGL-FX

Key Features

Angled Corner Plate Leg Fittings: Furniture Legs & Feet for upholstery and soft furnishing projects.

Product Details

Frequently Asked Questions

What is Angled Corner Plate Leg Fittings used for?

Angled Corner Plate Leg Fittings is a furniture fitting or accessory used to complete, restore, or enhance upholstered furniture — including legs, castors, glides, and castor cups for chairs, sofas, and ottomans.

What sizes and finishes are available?

Sizes and finishes vary by product — check the variant options above for the specific dimensions, thread sizes, and finishes available for this item.

What weight can furniture legs and castors support?

Weight capacity varies by product type and size. Castors and legs for domestic upholstered furniture are typically rated for 50-100kg per unit. Check the product specification for the weight rating of this item.

How are furniture legs attached to upholstered furniture?

Most furniture legs attach via a threaded insert or bolt plate fixed to the base of the furniture frame. Castor sockets press-fit into the leg. Always ensure the fitting type matches your furniture frame.

Why choose Upholstery Warehouse for furniture fittings?

Upholstery Warehouse stocks a wide range of furniture hardware and accessories at trade prices, with fast UK despatch and knowledgeable product support for trade and domestic customers.
